PR-283 Differential Pressure Transducer

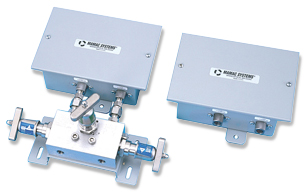

FeaturesDifferential pressure transducer with manifold

  • 100% solid-state fused silicon pressure sensors

  • Rugged, leakproof 17-4 PH stainless steel monolithic pressure cavities with no welds, O-rings, seams, or bonds

  • Up to 3 field-selectable ranges in a single unit

  • Wide 12 to 40 VDC/12 to 35 VAC unregulated supply voltage

  • Two temperature-compensated humidity output versions: 4 to 20 mA 2-wire or field selectable 0 to 5 VDC / 0 to 10 VDC

  • NIST traceable calibration

  • Modular 316 stainless steel three-valve monolithic manifold assembly (VM-705)

  • Rugged NEMA-4 (IP-65) enclosure with external mounting bracket

  • Short circuit and reverse polarity protected

  • Conforms to EMC standards EN50082-1 / EN55014 / EN60730-1
